ESD <> WIM Conversion batch

abbodi1406 · Nov 29, 2018

wimlib doesn't allow duplicate images name

MS imagex might allow it

armond · Sep 3, 2019

abbodi1406 said: ↑

WIM <> ESD updated.
Click to expand...

Well, Just noticed something:
Was trying to export a single index install.wim to install.esd.
It worked as always, but it shows incorrect file sizes? A bit funny though. Running on Windows 10 1903.
Edit: After updating wimlib to the latest 1.13.1, it now shows the correct file size when exporting WIMs.

MarvelX7 · May 17, 2023

abbodi1406 said: ↑
ESD2WIM-WIM2ESD
# Info #

An automated script to convert Solid-compressed ESD file to a Regular-compressed WIM file and vice versa
the script is ment for custom made install.esd or already decrypted ESD files.

# How To Use #

- Temporary disable AV or protection program so it doesn't interfere with the process.

- Make sure the ESD file is not read-only or blocked.

- Extract this pack to a folder with simple path to avoid troubles (example: C:\ESD).

- You may start the process using any of these ways:
# Copy/Move install.esd or install.wim file next to the script, then run convert.cmd

# Drag & drop the file on convert.cmd

# Run convert.cmd and you will be prompted to enter the file path

# Open command prompt in the script folder, and execute: convert FileNameAndPath
this method allow you to use ESD/WIM file from any location.
examples:
convert install.wim
convert "C:\Win8.1 ISO\sources\install.esd"
convert C:\RecoveryImage\install.esd

- You will have these options (varies depending on the number of indexes):
0 - Quit
1 - Export single index
2 - Export all indexes
3 - Export consecutive range of indexes
4 - Export randomly selected indexes

this option will be available only with administrator privileges:
5 - Apply single index to another drive

# Notes #

- When converting WIM to Solid ESD, the process will consume very high amount of CPU and RAM resources
if your machine specifications are not powerful enough, the operation will substantially paralyze your system.

- If you are converting ESD to WIM, make sure there is no install.wim file present in the script's directory.

- To use option 5, you must run convert.cmd 'as administrator'
during applying, you may see "[WARNING] Failed to enable short name support", you can safely ignore it.

# Download #

- Based on wimlib-imagex utility created by synchronicity (Eric Biggers)
- Works on Windows XP environment and later.
- Faster/Produce slightly smaller size compared to DISM.
Code:
   File: ESD2WIM-WIM2ESD-8.zip
  SHA-1: 4db316edf7f50aef75e08af7f3f15fafd7a4414f
SHA-256: 3e03bf79ebd7992c6f1663380d58a002e3127aa0a276c7d3f4dbdff2d190c123

https://github.com/abbodi1406/WHD/raw/master/scripts/ESD2WIM-WIM2ESD-8.zip
https://download.ru/files/4i1dpnBL
https://host-a.net/f/310471-esd2wim-wim2esd-8zip
Older:
Code:
  File: ESD2WIM-WIM2ESD-7.zip
  SHA1: 2109C768AE4213CE8C367D4478519C632587C304
SHA256: E944AFEECCFB9702FAD34955164318216FB67D82664B4ADC327059223FF3F124

https://github.com/abbodi1406/WHD/raw/master/scripts/ESD2WIM-WIM2ESD-7.zip
https://cloud.mail.ru/public/JdHf/gfmbjoNVx
http://www.mirrorcreator.com/files/1AI10G13
Code:
File: ESD2WIM-WIM2ESD-6.zip
 MD5: 0f5eba6ddde634e2d25065877bb01d0d
SHA1: 661e265127fdd515e823efeab54abb6a7c64de1a

Download | Mail.Ru | Mega | Mirrors
Code:
File: ESD2WIM-WIM2ESD-5.zip
 MD5: 1daa141e09c19b5a0d3e2896e225af7a
SHA1: 3439d23e0b7335266df30227ee7980392690d693

Download | Mirror | Mirrors
Code:
File: ESD2WIM-WIM2ESD-4.zip
 MD5: c1f2c625a896e5cb2e2efcca1c8bc6f7
SHA1: 23252c0d50136e012b126455561e951a5adbb549

Download
Mirror
Code:
File: ESD2WIM-WIM2ESD-wimlib-3.7z
 MD5: 6737bcea44267180a0c234f6ba182ca5
SHA1: 1071a5563721fe458e5cdc475faede35e7b4f5c5

Download
Code:
File: ESD2WIM-WIM2ESD-wimlib-2.7z
 MD5: 60c2d8b78b48fc2f3ab850d5eac3beca
SHA1: db0d0c8755b50fd1e5da5fdbad8b8354180840c2

Download
Mirror
Code:
File: ESD2WIM-WIM2ESD-wimlib.7z
 MD5: ff1b69777fdf9699214a952aa7b7943c
SHA1: 694a430711300c21413c424dad75391d1c493f04
Dev-Host
files.fm
- Based on Microsoft DISM tool.
- Works on Windows 7 environment and later.
Code:
File: ESD2WIM-WIM2ESD-dism-2.7z
 MD5: b7b808a000f471ae87c555793f28608e
SHA1: 2ccc6bfe5a9f579a84d7fd113ffb09c22e4d35f9

Download | Mirror | Mirrors
Older:
Code:
File: ESD2WIM-WIM2ESD-dism.7z
 MD5: d655e934646559052517c8bfb627d976
SHA1: 6e983a0bf56393d472715a0a0ce86e38b9b9f91f
Dev-Host
files.fm
Click to expand...
Code:
File: ESD2WIM-WIM2ESD-v2.7z
SHA1: 40f4b1b5b4cc7ac2d14dd4e53849d3bcb5a89f35
files.fm
Dev-Host
Click to expand...
@abbodi1406 suddenly im getting this warning
Code:
[WARNING] Couldn't create parallel chunk compressor: Ran out of memory.
          Falling back to single-threaded compression.
Although i still have 10g ram unused ?
Any thoughts

abbodi1406 · May 18, 2023

Try the latest wimlib

Acideb135 · Aug 12, 2024

@abbodi1406 you can update ESD2WIM 8 and UUP -CONVERTER 107 with the libwim-15.dll v1.14.4 , 32 and 64 bits from 24-02-24 instead of 19-04-21 for ESD2WIM and 28-04-23 for UUP -Converter 107

Edit: Attached Files: ESD2WIM-WIM2ESD-8-update (not for XP)

abbodi1406 · Aug 12, 2024

ESD2WIM might need it (v1.13.6 if i want to keep XP-compatibility)

not necessary for uup-converter

Acideb135 · Aug 19, 2024

abbodi1406 said: ↑

ESD2WIM might need it (v1.13.6 if i want to keep XP-compatibility)

not necessary for uup-converter
Click to expand...

And you know a lot of people still on XP ?

But Why not .

ciscokid · Mar 25, 2025

@abbodi1406 Just a quick question if only for proof of concept going from WIM to ESD, is there any way this script can work when there are only 3 indexes in the WIM file?

I tried it on the IoT Enterprise LTSC 2024 WIM file and it says it can't do anything under 4 indexes.

No biggie at all, just checking, thanks for your time!

abbodi1406 · Mar 25, 2025

ciscokid said: ↑

@abbodi1406 Just a quick question if only for proof of concept going from WIM to ESD, is there any way this script can work when there are only 3 indexes in the WIM file?

I tried it on the IoT Enterprise LTSC 2024 WIM file and it says it can't do anything under 4 indexes.

No biggie at all, just checking, thanks for your time!
Click to expand...

ESD2WIM convert.cmd does not have that restriction

ESD2ISO decrypt.cmd does have it, and it's for a different purpose

ciscokid · Mar 26, 2025

abbodi1406 said: ↑

ESD2WIM convert.com does not have that restriction

ESD2ISO decrypt.cmd does have it, and it's for a different purpose
Click to expand...

Thank you!

My VN · Nov 14, 2025

abbodi1406 said: ↑
ESD2WIM-WIM2ESD

# Info #

An automated script to convert Solid-compressed ESD file to a Regular-compressed WIM file and vice versa
the script is ment for custom made install.esd or already decrypted ESD files.

# How To Use #

- Temporary disable AV or protection program so it doesn't interfere with the process.

- Make sure the ESD file is not read-only or blocked.

- Extract this pack to a folder with simple path to avoid troubles (example: C:\ESD).

- You may start the process using any of these ways:
# Copy/Move install.esd or install.wim file next to the script, then run convert.cmd

# Drag & drop the file on convert.cmd

# Run convert.cmd and you will be prompted to enter the file path

# Open command prompt in the script folder, and execute: convert FileNameAndPath
this method allow you to use ESD/WIM file from any location.
examples:
convert install.wim
convert "C:\Win8.1 ISO\sources\install.esd"
convert C:\RecoveryImage\install.esd

- You will have these options (varies depending on the number of indexes):
0 - Quit
1 - Export single index
2 - Export all indexes
3 - Export consecutive range of indexes
4 - Export randomly selected indexes

this option will be available only with administrator privileges:
5 - Apply single index to another drive

# Notes #

- When converting WIM to Solid ESD, the process will consume very high amount of CPU and RAM resources
if your machine specifications are not powerful enough, the operation will substantially paralyze your system.

- If you are converting ESD to WIM, make sure there is no install.wim file present in the script's directory.

- To use option 5, you must run convert.cmd 'as administrator'
during applying, you may see "[WARNING] Failed to enable short name support", you can safely ignore it.

# Download #

- Based on wimlib-imagex utility created by synchronicity (Eric Biggers)
- Works on Windows XP environment and later.
- Faster/Produce slightly smaller size compared to DISM.
Code:
   File: ESD2WIM-WIM2ESD-8.zip
  SHA-1: 4db316edf7f50aef75e08af7f3f15fafd7a4414f
SHA-256: 3e03bf79ebd7992c6f1663380d58a002e3127aa0a276c7d3f4dbdff2d190c123

https://github.com/abbodi1406/WHD/raw/master/scripts/ESD2WIM-WIM2ESD-8.zip
https://download.ru/files/4i1dpnBL
https://host-a.net/f/310471-esd2wim-wim2esd-8zip
Older:
Code:
  File: ESD2WIM-WIM2ESD-7.zip
  SHA1: 2109C768AE4213CE8C367D4478519C632587C304
SHA256: E944AFEECCFB9702FAD34955164318216FB67D82664B4ADC327059223FF3F124

https://github.com/abbodi1406/WHD/raw/master/scripts/ESD2WIM-WIM2ESD-7.zip
https://cloud.mail.ru/public/JdHf/gfmbjoNVx
http://www.mirrorcreator.com/files/1AI10G13
Code:
File: ESD2WIM-WIM2ESD-6.zip
 MD5: 0f5eba6ddde634e2d25065877bb01d0d
SHA1: 661e265127fdd515e823efeab54abb6a7c64de1a

Download | Mail.Ru | Mega | Mirrors
Code:
File: ESD2WIM-WIM2ESD-5.zip
 MD5: 1daa141e09c19b5a0d3e2896e225af7a
SHA1: 3439d23e0b7335266df30227ee7980392690d693

Download | Mirror | Mirrors
Code:
File: ESD2WIM-WIM2ESD-4.zip
 MD5: c1f2c625a896e5cb2e2efcca1c8bc6f7
SHA1: 23252c0d50136e012b126455561e951a5adbb549

Download
Mirror
Code:
File: ESD2WIM-WIM2ESD-wimlib-3.7z
 MD5: 6737bcea44267180a0c234f6ba182ca5
SHA1: 1071a5563721fe458e5cdc475faede35e7b4f5c5

Download
Code:
File: ESD2WIM-WIM2ESD-wimlib-2.7z
 MD5: 60c2d8b78b48fc2f3ab850d5eac3beca
SHA1: db0d0c8755b50fd1e5da5fdbad8b8354180840c2

Download
Mirror
Code:
File: ESD2WIM-WIM2ESD-wimlib.7z
 MD5: ff1b69777fdf9699214a952aa7b7943c
SHA1: 694a430711300c21413c424dad75391d1c493f04
Dev-Host
files.fm
- Based on Microsoft DISM tool.
- Works on Windows 7 environment and later.
Code:
File: ESD2WIM-WIM2ESD-dism-2.7z
 MD5: b7b808a000f471ae87c555793f28608e
SHA1: 2ccc6bfe5a9f579a84d7fd113ffb09c22e4d35f9

Download | Mirror | Mirrors
Older:
Code:
File: ESD2WIM-WIM2ESD-dism.7z
 MD5: d655e934646559052517c8bfb627d976
SHA1: 6e983a0bf56393d472715a0a0ce86e38b9b9f91f
Dev-Host
files.fm
Code:
File: ESD2WIM-WIM2ESD-v2.7z
SHA1: 40f4b1b5b4cc7ac2d14dd4e53849d3bcb5a89f35
files.fm
Dev-Host
Click to expand...
Died link bro, fix me. Thank you

abbodi1406 · Nov 14, 2025

My VN said: ↑

Died link bro, fix me. Thank you
Click to expand...

https://pixeldrain.com/u/ZEjwZWMa
https://files.catbox.moe/dkgkir.zip

My VN · Nov 16, 2025

abbodi1406 said: ↑

https://pixeldrain.com/u/ZEjwZWMa
https://files.catbox.moe/dkgkir.zip
Click to expand...

Thank you so much !

My VN · Nov 18, 2025

After compressing ESD file, error 4% during installation

shhnedo · Nov 18, 2025

@My VN Make sure your install.esd is in good order(the content of it is not corrupted) - if it installs just fine as an install.wim, then just redo the compression to .esd.

EXO56 · Nov 19, 2025

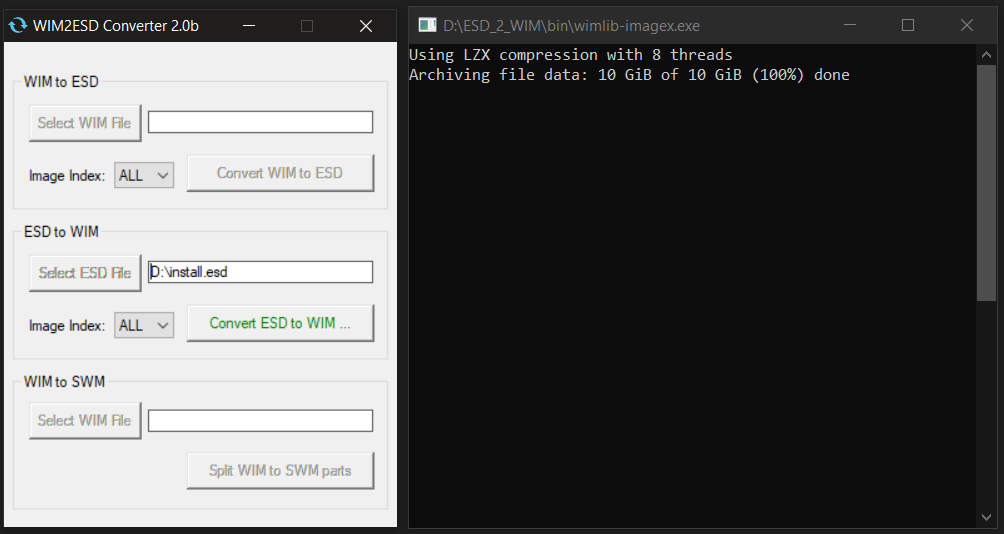

Made a scripted converter with a gui based on wimlib-imagex and supporting Drag&Drop time ago.

Still in beta cause the code needs more work...

My VN · Nov 26, 2025

EXO56 said: ↑

Made a scripted converter with a gui based on wimlib-imagex and supporting Drag&Drop time ago.

Still in beta cause the code needs more work...
Click to expand...

share me plz ! thanks !
