murphy78 DiskPart and Apply Image Script

Discussion in 'Scripting' started by murphy78, Apr 2, 2014.

  1. audison

    audison MDL Novice

    Dec 15, 2012
    39
    1
    0
    Enthousiast thanks for the reply. So what do I need for basic installation? It's "bios" only no uefi
    I am a bit lost in all different instructions over this thread...

  2. Enthousiast

    Enthousiast MDL Tester

    Oct 30, 2009
    49,901
    104,491
    450
    The instructions basically are:

    Copy the "windows" folder from the project folder to the mounted boot.wim index 2 and integrate the winrecfg packages (latter is not needed for the purpose you want it for).

  3. audison

    audison MDL Novice

    Dec 15, 2012
    39
    1
    0
    I think I did that successfully. I will try to add gpu drivers to the iso if it help somehow with booting but I am not hopeful. Laptop shuts down when the "loading/booting" from usb image is finished or so it looks like.

  4. 0xy89n

    0xy89n MDL Novice

    Aug 15, 2018
    11
    3
    0
  5. Bira

    Bira MDL Senior Member

    Oct 4, 2017
    289
    176
    10
    Hi s1ave77, how can I do to recognize the index, 1 or 1-100
    for /f "tokens=2 delims=: " %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" ^| findstr "Index"') do set VERSIONS=%%i

    and also all editions;
    for /f "tokens=2 delims=: " %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /index:1 ^| findstr /i Edition') do set Edition=%%i

    and make all index: 1 be for everyone or for example 1-2 or 2-3, can you help me?

    Thank you!!!

  6. s1ave77

    s1ave77 Has left at his own request

    Aug 15, 2012
    16,093
    24,398
    340
    Code:
    for /f "tokens=2 delims=: " %%A in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" ^| findstr "Index"') do (
         for /f "tokens=2 delims=: " %%a in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /index:%%A ^| findstr /i Edition') do set Edition=%%a
    )


    Code:
    for /d %%A in (2,3) do (
         for /f "tokens=2 delims=: " %%a in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /index:%%A ^| findstr /i Edition') do set Edition=%%a
    )


    Note: %%a and %%A are different runtimevariables and are used to not confuse the nested loop.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  7. Bira

    Bira MDL Senior Member

    Oct 4, 2017
    289
    176
    10

    Hello s1ave77 so below what I want to tell you the way you did not worked out right what I want to do, or of% VERSIONS% = %% i, it will be the index count;

    for all counts
    for /f "tokens=2 delims=: " %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" ^| findstr "Index"') do set VERSIONS=%%i

    For 1 index I got it recognized
    for /f "tokens=2 delims=: " %%a in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /Index:1 ^| findstr "Index"') do set VERSIONS=%%a

    and how do I recognize 1-3 or 1-5 for example in index without looping and pass already recognizing? what if he does it I'll know how to do 1-2-2-3 then understand?

    I already know of 1 index
    for /f "tokens=2 delims=: " %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /index:1 ^| findstr /i Edition') do set Edition=%%i

    in the editions I want to know how to recognize all without doing a loop, and also 1-3 or 3-5 as I said later I will know how to do the rest if I need 1-100


    So this is how my script works and it works perfectly in the editing there like this index: 1 the whole loop shows only the first, so I want every loop of the assemblies to recognize each edition% edition% I the quantity is 1-3 which I put it to assemble only the images I want not all understand? if you can help me

    ::================================================================================

    for /f "tokens=2 delims=: " %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /index:1 ^| findstr /i Edition') do set Edition=%%i
    for /f "tokens=2 delims=: " %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" ^| findstr "Index"') do set VERSIONS=%%i
    for /f "tokens=1" %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /index:1 ^| find /i "Default"') do set DEFAULTLANGUAGE=%%i
    for /f "tokens=2 delims=: " %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /index:1 ^| find /i "Architecture"') do set archwim=%%i
    if exist "%DVDDIR%\sources\install.wim" for /f "tokens=3 delims=: " %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /index:1 ^| find /i "ServicePack Build"') do set svcbuild=%%i
    for /f "tokens=2 delims=:" %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /Index:1 ^| find "ServicePack Level"') do set SPL=%%i
    for /f "tokens=2 delims=: " %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /Index:1 ^| findstr /i Version') do set Version=%%i
    for /f "tokens=2 delims=:" %%i in ('dism\dism.exe /english /get-wiminfo /wimfile:"%DVDDIR%\sources\install.wim" /Index:1 ^| findstr /i Installation') do set Installation=%%i
    )
    ::================================================================================

    for /L %%a in (1, 1, %VERSIONS%) do (
    if not exist %Mont% mkdir %Mont% >nul
    if not exist %Instal%\%%a mkdir %Instal%\%%a >nul
    if not exist %Tempdir% mkdir %Tempdir% >nul
    if not exist %Dismtempdir% mkdir %Dismtempdir% >nul
    echo ============================================================
    echo Montando Imagem - Index %%a-%VERSIONS%
    echo ============================================================
    echo.
    echo Edicao : %Edition%
    echo Versao : %Version%.%svcbuild%.%SPL%
    echo Quantidade : %%a-%VERSIONS%
    echo Idioma : %DEFAULTLANGUAGE%
    echo Arquitetura : %archwim%
    echo Instalacao :%Installation%
    echo.
    "%DISMRoot%" /ScratchDir:"%Dismtempdir%" /mount-wim /wimfile:"%DvdDir%\sources\install.wim" /index:%%a /mountdir:%Instal%\%%a
    echo.

  8. vigipirate

    vigipirate MDL Senior Member

    Feb 24, 2011
    398
    99
    10
    Hello sir
    need your help
    thank you for your work
    murphy78's DiskPart and Apply script v1.2.8 is out of date
    how can I get winRe recovery in my language because by default it is in english I will want it in french but i do not know how to do it your script can be updated to install languages multi winRe
    thank you in advance

  9. Enthousiast

    Enthousiast MDL Tester

    Oct 30, 2009
    49,901
    104,491
    450
    The adapted to run in French installs MENU cmd:
    Code:
    @ECHO OFF
    pushd %~dp0
    SetLocal EnableDelayedExpansion

    :color and title
    color 1f
    title murphy78's DiskPart and Apply Image Script 1.2.8

    :Set some defaults for later
    set DISK=0
    set WINRE=1
    set PUSHBUTTON=0
    set MULTIBOOT=0
    set NOSYSPART=0
    set DISKPREPARED=0
    set ERRORTEMP=0
    set MAXPART=0
    set FASTSETUP=0
    set ISACTIVE=0

    :INITIALIZATION SECTION
    :Firstly, make sure there is an install image
    :Use a set var="" else the IF NOT EXIST statement will crash the script
    SET INSTALLIMAGE=""
    SET SPLIT=0

    FOR %%i IN (Z Y X W V U T S R Q P O N M L K J I H G F E D C B A) DO (IF EXIST "%%i:\Sources\install.wim" SET INSTALLIMAGE="%%i:\Sources\install.wim"&GOTO :SETUPCHECK)
    FOR %%i IN (Z Y X W V U T S R Q P O N M L K J I H G F E D C B A) DO (IF EXIST "%%i:\Sources\install.esd" SET INSTALLIMAGE="%%i:\Sources\install.esd"&GOTO :SETUPCHECK)
    FOR %%i IN (Z Y X W V U T S R Q P O N M L K J I H G F E D C B A) DO (IF EXIST "%%i:\Sources\install.swm" SET INSTALLIMAGE="%%i:\Sources\install.swm"&SET SPLIT=1&SET SPLITPATTERN="%%i:\Sources\install*.swm"&GOTO :SETUPCHECK)

    IF EXIST X:\Windows\SysWow64 (
    GOTO :IMG64
    )

    :IMG32
    FOR %%i IN (Z Y X W V U T S R Q P O N M L K J I H G F E D C B A) DO (IF EXIST "%%i:\x86\Sources\install.wim" SET INSTALLIMAGE="%%i:\x86\Sources\install.wim"&GOTO :SETUPCHECK)
    FOR %%i IN (Z Y X W V U T S R Q P O N M L K J I H G F E D C B A) DO (IF EXIST "%%i:\x86\Sources\install.esd" SET INSTALLIMAGE="%%i:\x86\Sources\install.esd"&GOTO :SETUPCHECK)
    FOR %%i IN (Z Y X W V U T S R Q P O N M L K J I H G F E D C B A) DO (IF EXIST "%%i:\x86\Sources\install.swm" SET INSTALLIMAGE="%%i:\x86\Sources\install.swm"&SET SPLIT=1&SET SPLITPATTERN="%%i:\x86\Sources\install*.swm"&GOTO :SETUPCHECK)
    GOTO :NOIMAGE

    :IMG64
    FOR %%i IN (Z Y X W V U T S R Q P O N M L K J I H G F E D C B A) DO (IF EXIST "%%i:\x64\Sources\install.wim" SET INSTALLIMAGE="%%i:\x64\Sources\install.wim"&GOTO :SETUPCHECK)
    FOR %%i IN (Z Y X W V U T S R Q P O N M L K J I H G F E D C B A) DO (IF EXIST "%%i:\x64\Sources\install.esd" SET INSTALLIMAGE="%%i:\x64\Sources\install.esd"&GOTO :SETUPCHECK)
    FOR %%i IN (Z Y X W V U T S R Q P O N M L K J I H G F E D C B A) DO (IF EXIST "%%i:\x64\Sources\install.swm" SET INSTALLIMAGE="%%i:\x64\Sources\install.swm"&SET SPLIT=1&SET SPLITPATTERN="%%i:\x86\Sources\install*.swm"&GOTO :SETUPCHECK)

    :IF none of the install.wim, esd, or swm, files were found in a sources\ directory, bail this failboat
    :NOIMAGE
    IF NOT EXIST !INSTALLIMAGE! (
    CLS
    ECHO ===============================================================================
    ECHO.                          NO IMAGE WINS: FATALITY!
    ECHO -------------------------------------------------------------------------------
    ECHO Setup could not find an install.wim, esd, or swm file.
    ECHO Try again when you bring a setup image.
    ECHO -------------------------------------------------------------------------------
    pause
    GOTO :QUIT)

    :Next check to see if someone added script to an existing setup boot.wim
    :If copied to an existing boot.wim give option to opt-out
    :WinPE file winpeshl.ini should list setup.exe next in apps
    :SETUPCHECK

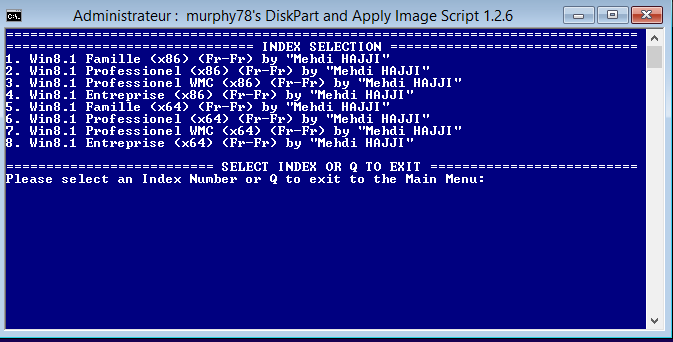

    ECHO Scanning !INSTALLIMAGE! to create the index list file. Please Wait...
    IF EXIST X:\IMAGELIST.TXT DEL /q /s X:\IMAGELIST.TXT
    for /f "tokens=2 delims=: " %%a in ('dism /Get-WimInfo /WimFile:!INSTALLIMAGE! ^| find /i "Index"') do (
    for /f "tokens=2 delims=:" %%g in ('dism /Get-WimInfo /WimFile:!INSTALLIMAGE! /Index:%%a ^| find /i "Nom"') do (ECHO %%a.%%g>>X:\IMAGELIST.TXT))
    IF NOT EXIST X:\Setup.exe GOTO :UEFICHECK
    CLS
    ECHO -------------------------------------------------------------------------------

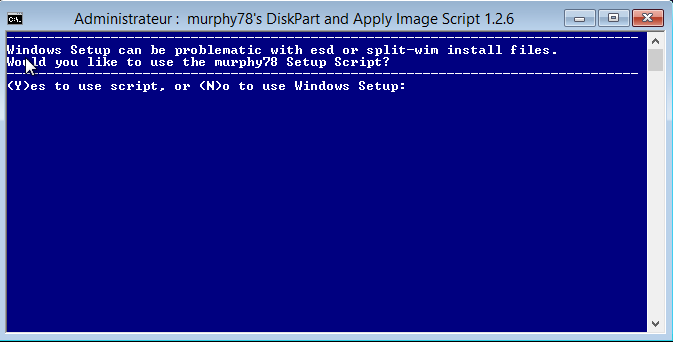

    ECHO Windows Setup can be problematic with esd or split-wim install files.
    ECHO Would you like to use the murphy78 Setup Script?
    ECHO -------------------------------------------------------------------------------
    choice /c yn /n /m "(Y)es to use script, or (N)o to use Windows Setup: "
    IF !ERRORLEVEL! EQU 2 (exit)



    :Lastly do the UEFI detection
    :UEFICHECK
    :Check whether user has booted with UEFI or BIOS and set UEFI=1 if UEFI
    wpeutil UpdateBootInfo
    for /f "tokens=2* delims=    " %%A in ('reg query HKLM\System\CurrentControlSet\Control /v PEFirmwareType') DO SET Firmware=%%B
    :: Note: delims is a TAB followed by a space.
    if !Firmware!==0x1 set UEFI=0
    if !Firmware!==0x2 set UEFI=1


    :You can change the Recovery partition shrink amount if you are working with large images
    :Or need to limit the amount of space taken.
    set SHRINKAMOUNT=5000

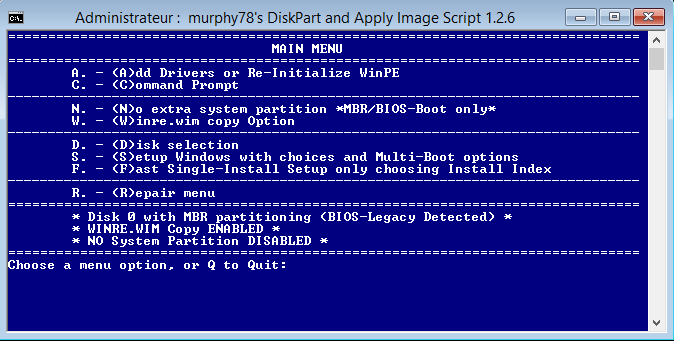

    :MAINMENU
    CLS
    IF NOT "!CD!"=="%~dp0" cd /D "%~dp0"
    IF !NOSYSPART! EQU 1 SET WINRE=0
    SET PUSHBUTTON=0
    ECHO ===============================================================================
    ECHO.                                 MAIN MENU
    ECHO ===============================================================================
    ECHO.        A. - ^(A^)dd Drivers or Re-Initialize WinPE
    ECHO.        C. - ^(C^)ommand Prompt
    :: Only display these option in BIOS boot
    IF !UEFI! EQU 0 (
       ECHO -------------------------------------------------------------------------------
       ECHO.        N. - ^(N^)o extra system partition *MBR/BIOS-Boot only*
       ECHO.        W. - ^(W^)inre.wim copy Option
    )
    ECHO -------------------------------------------------------------------------------
    ECHO.        D. - ^(D^)isk selection
    ECHO.        S. - ^(S^)etup Windows with choices and Multi-Boot options

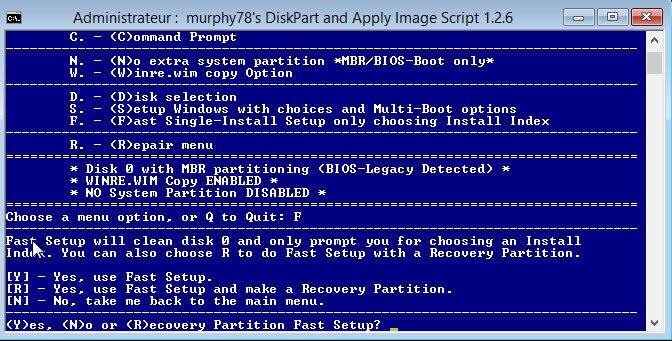

    ECHO.        F. - ^(F^)ast Single-Install Setup only choosing Install Index
    IF EXIST X:\sources\recovery\recenv.exe (
    ECHO -------------------------------------------------------------------------------
    ECHO.        R. - ^(R^)epair menu
    )
    ECHO ===============================================================================
    if !UEFI! EQU 1 (
       ECHO.        * Disk !DISK! with GPT partitioning ^(UEFI-Booting Detected^) *
    ) ELSE (
    :: Only display these flags in BIOS boot
       ECHO.        * Disk !DISK! with MBR partitioning ^(BIOS-Legacy Detected^) *
       IF !WINRE! EQU 1 (
          ECHO.        * WINRE.WIM Copy ENABLED *
       ) ELSE (
          ECHO.        * WINRE.WIM Copy DISABLED *
       )
       IF !NOSYSPART! EQU 1 (
          ECHO.        * NO System Partition ENABLED *
       ) ELSE (
          ECHO.        * NO System Partition DISABLED *
       )
    )

    ECHO ===============================================================================

    choice /c acnwdsfrq /n /m "Choose a menu option, or Q to Quit: "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 1 (GOTO :SelectionA)
    IF !ERRORTEMP! EQU 2 (GOTO :SelectionC)
    IF !ERRORTEMP! EQU 3 (GOTO :SelectionN)
    IF !ERRORTEMP! EQU 4 (GOTO :SelectionW)
    IF !ERRORTEMP! EQU 5 (GOTO :SelectionD)
    IF !ERRORTEMP! EQU 6 (GOTO :SelectionS)
    IF !ERRORTEMP! EQU 7 (GOTO :SelectionF)
    IF !ERRORTEMP! EQU 8 (GOTO :SelectionR)
    IF !ERRORTEMP! EQU 9 (GOTO :QUIT)
    GOTO :MAINMENU

    :SelectionD
    GOTO :DISKMENU

    :SelectionW
    IF !UEFI! EQU 1 GOTO :MAINMENU
    ECHO -------------------------------------------------------------------------------
    ECHO Windows normally copies the WinRE.WIM recovery file to a separate partition.
    ECHO Unless you enable the MBR optional No System Partition option, it will
    ECHO still create a system partition; it will just be 100MB instead of 500MB.
    ECHO ALL subsequent multi-boot setups will have this WinRE copy disabled.
    ECHO.
    ECHO [Y] - Yes, I want to set this option.
    ECHO [N] - No, take me back to the main menu.
    ECHO -------------------------------------------------------------------------------
    choice /c yn /m /n "Would you like to CHANGE the WINRE movement flag? (Y/N): "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 1 (IF !WINRE! EQU 0 (SET NOSYSPART=0
    SET WINRE=1)
    IF !WINRE! EQU 1 (SET NOSYSPART=0
    SET WINRE=0))
    IF !ERRORTEMP! EQU 2 (GOTO :MAINMENU)
    GOTO :MAINMENU

    :SelectionN
    :: Go back to menu if UEFI mode. Option not available
    IF !UEFI! EQU 1 GOTO :MAINMENU
    ECHO.
    ECHO -------------------------------------------------------------------------------
    ECHO Windows normally creates a separate SYSTEM partition
    ECHO MBR partitioning is limited on primary partitions per drive
    ECHO By default the extra partition is created
    ECHO.
    ECHO [Y] - Yes, I want to set this option.
    ECHO [N] - No, take me back to the main menu.
    ECHO -------------------------------------------------------------------------------
    choice /c yn /n /m "Would you like to change the No System Partition option? (Y/N): "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 1 (IF !NOSYSPART! EQU 0 (SET NOSYSPART=1
    GOTO :MAINMENU)
    IF !NOSYSPART! EQU 1 (SET NOSYSPART=0
    GOTO :MAINMENU))
    GOTO :MAINMENU

    :SelectionC
    START CMD
    GOTO :MAINMENU

    :SelectionR
    IF NOT EXIST X:\sources\recovery\recenv.exe GOTO :MAINMENU
    START X:\sources\recovery\recenv.exe
    GOTO :MAINMENU

    :SelectionA
    CLS
    ECHO -------------------------------------------------------------------------------
    ECHO Would you like to add a driver to the Windows PE? Note that the Drivers need
    ECHO to be compatible with this WINPE Image. Example: Raid driver or USB3 driver
    ECHO You can also choose I to Initialize any Plug and Play devices.
    ECHO.
    ECHO [Y] - Yes, I want to add a driver or driver path to WinPE.
    ECHO [N] - No, take me back to the main menu.
    ECHO [I] - Reinitialize WinPE ^(call WPEINIT^)
    ECHO -------------------------------------------------------------------------------
    choice /c yin /n /m "Add Driver? (Y)es, (N)o, or (I)nitialize: "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 2 (ECHO.
    ECHO Initializing...
    WPEINIT
    GOTO :SelectionA)
    IF !ERRORTEMP! EQU 3 (GOTO :MAINMENU)
    IF !ERRORTEMP! EQU 0 GOTO :SelectionA

    ECHO -------------------------------------------------------------------------------
    ECHO Use the folder, separate multiples with comma:
    ECHO Example: D:\x64\ahci86s.inf,D:\x64-2\ahci86w.inf
    ECHO.
    ECHO If given a directory, the command will recurse to load ALL INF files it finds.
    ECHO You can use the cmd prompt to locate the file name and path
    ECHO -------------------------------------------------------------------------------
    :: SET /P is fine if using SetLocal EnableDelayedExpansion
    :SelectionAChoice2
    set INPUT=
    set /P INPUT="Please type the path, [C] for CMD or [Q] to go back: " || set INPUT=
    IF [!INPUT!]==[] GOTO :SelectionAChoice2
    IF /I [!INPUT!]==[Q] GOTO :MAINMENU
    IF /I [!INPUT!]==[C] (
       START CMD
       GOTO :SelectionA
    )
    ECHO Attempting to add driver from [!INPUT!]
    IF NOT EXIST "!INPUT!" GOTO :SelectionAError
    :: Yes, this weird line will only continue on a directory.
    :: || is "if previous command fails"
    :: Putting commands in parentheses means it'll evaluate all commands
    :: This is a hack to avoid using ERRORLEVEL since I don't think it's reliable...
    :: ...when we use EnableDelayedExpansion
    ((dir /A:D "!INPUT!" >Nul 2>&1) && (
       pushd "!INPUT!"
       FOR /R %%G IN (*.inf) DO (
          echo Adding [%%G]...
          drvload "%%~fG" || echo WARNING: Could not load [%%G]
       )
       popd
    )) || ( drvload "!INPUT!" && ( (ECHO.) & PAUSE ) ) || GOTO :SelectionAError
    GOTO :SelectionA

    :SelectionAError
    ECHO ERROR: [!INPUT!] does not exist or DRVLOAD had errors.
    Echo Check path and spelling.
    ECHO Press any key to go back to the WinPE Driver menu.
    pause >Nul
    GOTO :SelectionA

    :SelectionS
    GOTO :SETUP

    :SelectionF
    ECHO -------------------------------------------------------------------------------
    ECHO Fast Setup will clean disk !DISK! and only prompt you for choosing an Install
    ECHO Index. You can also choose R to do Fast Setup with a Recovery Partition.
    IF !UEFI! EQU 1 (
    ECHO Recovery Partition is not advisable for UEFI Win7/2008/2011 images.
    ECHO Use this option only if your UEFI setup is for Win8/2012 and later.
    )
    ECHO.
    ECHO [Y] - Yes, use Fast Setup.
    ECHO [R] - Yes, use Fast Setup and make a Recovery Partition.
    ECHO [N] - No, take me back to the main menu.
    ECHO -------------------------------------------------------------------------------
    choice /c ynr /n /m "(Y)es, (N)o or (R)ecovery Partition Fast Setup? "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 1 (
    SET FASTSETUP=1
    GOTO :SETUP)

    IF !ERRORTEMP! EQU 2 GOTO :MAINMENU

    IF !ERRORTEMP! EQU 3 (
    SET FASTSETUP=1
    SET PUSHBUTTON=1
    GOTO :SETUP)

    GOTO :SelectionF

    :DISKMENU
    CLS
    ECHO ===============================================================================
    ECHO.                   SELECT YOUR DISK NUMBER ^(Default: 0^):
    ECHO -------------------------------------------------------------------------------
    ECHO List Disk|diskpart
    ECHO.
    ECHO -------------------------------------------------------------------------------
    ECHO Select a disk number ^(0-9^)
    ECHO [V] to List Disk Volumes
    ECHO [Q] to Quit to the Main Menu
    ECHO -------------------------------------------------------------------------------
    ECHO Note that disk 0 is the first disk, and they might not appear in order.
    ECHO Current DISK selected is ^( %DISK% ^)
    choice /c 0123456789VQ /n /m "Choose a number, (V) or (Q): "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 1 (SET DISK=0)
    IF !ERRORTEMP! EQU 2 (SET DISK=1)
    IF !ERRORTEMP! EQU 3 (SET DISK=2)
    IF !ERRORTEMP! EQU 4 (SET DISK=3)
    IF !ERRORTEMP! EQU 5 (SET DISK=4)
    IF !ERRORTEMP! EQU 6 (SET DISK=5)
    IF !ERRORTEMP! EQU 7 (SET DISK=6)
    IF !ERRORTEMP! EQU 8 (SET DISK=7)
    IF !ERRORTEMP! EQU 9 (SET DISK=8)
    IF !ERRORTEMP! EQU 10 (SET DISK=9)
    IF !ERRORTEMP! EQU 11 (GOTO :DISKSelectionV)
    IF !ERRORTEMP! EQU 12 (GOTO :MAINMENU)

    :VERIFY DISK EXISTS ELSE GO BACK AND TRY AGAIN
    ECHO LIST DISK | DISKPART | find /i "Disque !DISK!" >NUL
    IF !ERRORLEVEL! NEQ 0 (
    ECHO.
    ECHO DISK !DISK! is returning errors.
    ECHO Press any key to return to Disk Selection.
    ECHO.
    SET DISK=0
    PAUSE>NUL
    GOTO :DISKMENU
    )
    GOTO :DISKMENU

    :DISKSelectionV
    ECHO List Volume|diskpart
    ECHO.
    ECHO Press any key to return to the DISK MENU.
    PAUSE > NUL & GOTO :DISKMENU


    :SETUP
    :THIS PART does the initial system and uefi partitions
    CLS
    :Skip display and options if fastsetup
    IF !FASTSETUP! EQU 1 GOTO:WIPEPROCEED
    IF !DISKPREPARED! EQU 1 (GOTO :DISKPREPMSG)
    ECHO ===============================================================================
    ECHO.                  DISK SYSTEM PARTITION PREPARATION OPTIONS
    ECHO -------------------------------------------------------------------------------
    ECHO.  Disk ###  Status         Size     Free     Dyn  Gpt
    ECHO.  --------  -------------  -------  -------  ---  ---
    ECHO LIST DISK | DISKPART | find /i "Disque !DISK!"
    ECHO -------------------------------------------------------------------------------
    ECHO Setup will now prepare Disk !DISK! for you.
    ECHO Erase DISK !DISK! for you?
    ECHO.
    ECHO [Y] - Yes, Erase all data on DISK !DISK!
    ECHO [K] - Keep existing Disk Partitions
    ECHO [Q] - No, take me back to the main menu.
    ECHO -------------------------------------------------------------------------------
    choice /c ykq /m "(Y)es, (K)eep existing, or (Q)uit back to Main Menu? "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 1 GOTO :WIPEPROCEED
    IF !ERRORTEMP! EQU 2 GOTO :USE-EXISTING-PARTITIONS
    GOTO :MAINMENU

    :USE-EXISTING-PARTITIONS
    :First make sure that disk is GPT formatted if UEFI mode
    ECHO LIST DISK|DISKPART|FIND /i "*">NUL
    SET ERRORTEMP=!ERRORLEVEL!
    IF !UEFI! EQU 1 (
    IF !ERRORTEMP! NEQ 0 (
    ECHO -------------------------------------------------------------------------------
    ECHO DISK !DISK! is not GPT formatted and you are booting in UEFI mode.
    ECHO You need to CLEAN the disk and convert to GPT if you wish to proceed.
    ECHO -------------------------------------------------------------------------------
    PAUSE
    GOTO :SETUP
    ))
    IF !UEFI! EQU 0 (
    IF !ERRORTEMP! EQU 0 (
    ECHO -------------------------------------------------------------------------------
    ECHO DISK !DISK! is GPT formatted and you are booting in BIOS mode.
    ECHO You need to CLEAN the disk and convert to MBR if you wish to proceed.
    ECHO -------------------------------------------------------------------------------
    PAUSE
    GOTO :SETUP
    ))
    SET DISKPREPARED=1
    ECHO -------------------------------------------------------------------------------
    IF !UEFI! EQU 0 (
    ECHO This option will not create a System partition.
    ECHO Are you sure you want to use the existing system partition?
    )
    IF !UEFI! EQU 1 (
    ECHO This option will not create an EFI System or MSR Partition.
    ECHO Are you sure you want to use the existing system partition?
    )

    ECHO.
    ECHO [Y] Yes, I'm sure.
    ECHO [N] No, take me back to the choices.
    ECHO -------------------------------------------------------------------------------
    choice /c YN /n /m "Use the Existing System Partition? (Y/N): "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 2 GOTO :SETUP
    IF !UEFI! EQU 0 (SET WINRE=0
    SET NOSYSPART=1)
    GOTO :PARTITIONCREATION

    :WIPEPROCEED
    :start preparing the diskpart import script on the winpe ramdrive
    ECHO SELECT DISK !DISK! >X:\DISKPART.TXT
    ECHO CLEAN >>X:\DISKPART.txt
    GOTO :POST-WIPE

    :POST-WIPE
    :GPT VERSION
    IF !UEFI! EQU 1 (
    ECHO Convert GPT >>X:\DISKPART.txt
    ECHO create partition efi size=100 >>X:\DISKPART.txt
    ECHO format quick fs=fat32 label="System" >>X:\DISKPART.txt
    ECHO assign letter="S" >>X:\DISKPART.txt
    ECHO create partition msr size=128 >>X:\DISKPART.txt)

    :MBR VERSION
    IF !UEFI! EQU 0 (
    ECHO Convert MBR >>X:\DISKPART.txt
    :IF WINRE movement flag is off in MBR mode and nosyspart is off,
    :create a smaller system partition. IF nosyspart, don't make one
    IF !NOSYSPART! EQU 0 (
    IF !WINRE! EQU 1 (ECHO create partition primary size=500 >>X:\DISKPART.txt)
    IF !WINRE! EQU 0 (ECHO create partition primary size=100 >>X:\DISKPART.txt)
    ECHO format quick fs=ntfs label="System" >>X:\DISKPART.txt
    ECHO assign letter="W" >>X:\DISKPART.txt
    ECHO Active >>X:\DISKPART.txt
    SET ISACTIVE=1))

    :Import the diskpart script
    diskpart /s X:\diskpart.txt
    set DISKPREPARED=1
    GOTO :PARTITIONCREATION

    :DISKPREPMSG
    :This message is for people who have ran the initial disk prep and went back to main menu
    ECHO.
    ECHO ===============================================================================
    ECHO.                     Disk Prep already ran.
    ECHO -------------------------------------------------------------------------------
    choice /c yn /m "Run Disk Preparation again? "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 1 (SET DISKPREPARED=0 & GOTO :SETUP)

    :PARTITIONCREATION
    CLS
    :IF fast setup, use max partition and skip the choice
    IF !FASTSETUP! EQU 1 (
    ECHO SELECT DISK !DISK! >X:\DISKPART.TXT
    IF !UEFI! EQU 1 (
    ECHO create partition primary size=500 >>X:\DISKPART.txt
    ECHO format quick fs=ntfs label="Windows RE tools" >>X:\DISKPART.txt
    ECHO assign letter="W" >>X:\DISKPART.txt
    ECHO set id="de94bba4-06d1-4d40-a16a-bfd50179d6ac" >>X:\DISKPART.txt
    ECHO gpt attributes=0x8000000000000001 >>X:\DISKPART.txt)
    ECHO CREATE PARTITION PRIMARY >>X:\DISKPART.TXT
    SET MAXPART=1
    GOTO :AFTERPARTCHOICE)

    ECHO ===============================================================================
    ECHO.                        WINDOWS PARTITION CREATION:
    ECHO -------------------------------------------------------------------------------
    ECHO Setup will create a Windows Partition for Windows install location
    ECHO -------------------------------------------------------------------------------
    ECHO.  Disk ###  Status         Size     Free     Dyn  Gpt
    ECHO  --------  -------------  -------  -------  ---  ---
    ECHO LIST DISK | DISKPART | find /i "Disque !DISK!"
    ECHO.
    ECHO Diskpart defaults to MegaByte size for partitions.
    ECHO Remember to add to the size if you plan on using a Recovery Partition.
    ECHO Use only Numbers - Example: 10000 ^(10 GB^), 100000 ^(100 GB^)
    ECHO.
    ECHO [M] Maximum partition Size
    ECHO [E] Use an Existing Partition
    ECHO [Q] Quit to Main Menu
    ECHO -------------------------------------------------------------------------------
    :DONT USE NESTED SET /P command, use goto: with errorlevel to avoid if desired
    SET INPUT=
    SET /P INPUT="Please enter a NUMBER, M for Max, E for existing, Q for Main Menu: "
    IF NOT DEFINED INPUT GOTO :PARTITIONCREATION
    IF /I '!INPUT!'=='E' GOTO :EXISTING-PARTITION-OPTION
    IF /I '!INPUT!'=='Q' GOTO :MAINMENU
    GOTO :PARTITIONSIZE

    :EXISTING-PARTITION-OPTION
    ECHO SELECT DISK !DISK! >X:\DISKPART.TXT
    ECHO LIST PARTITION >>X:\DISKPART.TXT
    DISKPART /S X:\DISKPART.TXT
    ECHO.
    ECHO -------------------------------------------------------------------------------
    ECHO Recovery partitions are only enabled for a cleaned disk.
    ECHO Setup can still install windows to specific partitions, though.
    ECHO Select the Partition you wish to use, or Q to go back.
    ECHO -------------------------------------------------------------------------------
    SET INPUT=
    SET /P INPUT="Please select a Partition or Q to return to go back: "
    IF NOT DEFINED INPUT GOTO :EXISTING-PARTITION-OPTION
    IF /I '!INPUT!'=='Q' GOTO :PARTITIONCREATION
    for /f "tokens=1* delims=0123456789" %%a in ("A0%INPUT:"=%") do if not "%%b"=="" goto :EXISTING-PARTITION-OPTION
    :verify that the partition exists
    ECHO SELECT DISK !DISK! >X:\DISKPART.TXT
    ECHO LIST PARTITION >>X:\DISKPART.TXT
    DISKPART /S X:\DISKPART.TXT | FIND /i "Partition !INPUT!">NUL
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! NEQ 0 (
    ECHO INVALID PARTITION NUMBER.
    PAUSE
    GOTO :EXISTING-PARTITION-OPTION
    ) ELSE (
    SET WINRE=0
    IF !UEFI! EQU 0 (SET NOSYSPART=1)
    ECHO SELECT DISK !DISK! >X:\DISKPART.TXT
    ECHO SELECT PARTITION !INPUT! >>X:\DISKPART.TXT
    ECHO format quick fs=ntfs label="Windows" >>X:\DISKPART.txt
    ECHO Assign Letter="Z" >>X:\DISKPART.txt

    :Make the partition the active partition if BIOS-Boot
    IF !UEFI! EQU 0 (
    IF !ISACTIVE! EQU 0 (
    ECHO -------------------------------------------------------------------------------
    ECHO The first system partition on a MBR drive needs to be an Active partition.
    ECHO If you set more than one Active partition, you will need to run bcdboot
    ECHO after Setup on each of the Active drives like so:
    ECHO bcdboot c:\windows
    ECHO bcdboot d:\windows
    ECHO.
    ECHO If you have no previous Active partition, the script can set it for you.
    ECHO -------------------------------------------------------------------------------
    choice /c YN /m "Make this the Active MBR partition?"
    set ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 2 GOTO :RUNDPEXISTING
    ECHO ACTIVE >>X:\DISKPART.txt
    SET ISACTIVE=1
    ))

    :RUNDPEXISTING
    DISKPART /S X:\DISKPART.TXT
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORLEVEL! NEQ 0 (
    ECHO.
    ECHO THERE WERE ERRORS FORMATTING THE PARTITION
    ECHO.
    PAUSE
    GOTO :MAINMENU
    )
    GOTO :IMAGESELECTION
    )

    :PARTITIONSIZE

    ECHO SELECT DISK !DISK! >X:\DISKPART.TXT

    IF !UEFI! EQU 1 (
    ECHO create partition primary size=500 >>X:\DISKPART.txt
    ECHO format quick fs=ntfs label="Windows RE tools" >>X:\DISKPART.txt
    ECHO assign letter="W" >>X:\DISKPART.txt
    ECHO set id="de94bba4-06d1-4d40-a16a-bfd50179d6ac" >>X:\DISKPART.txt
    ECHO gpt attributes=0x8000000000000001 >>X:\DISKPART.txt)

    IF /I '!INPUT!'=='M' (
    ECHO Max partition chosen.
    ECHO There will be no room left on the disk for further installs.
    Choice /c yn /m "Use the Maximum partition size? "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 2 GOTO :PARTITIONCREATION
    SET MAXPART=1
    ECHO CREATE PARTITION PRIMARY >>X:\DISKPART.TXT
    ) ELSE (
    :Make sure only numbers were entered since not using M for maximum
    for /f "tokens=1* delims=0123456789" %%a in ("A0%INPUT:"=%") do if not "%%b"=="" goto :PARTITIONCREATION

    :SIZED PARTITION CREATION
    :first make sure no letters, else kick it back to the partition menu
    for /f "tokens=1* delims=0123456789" %%a in ("A0%INPUT:"=%") do if not "%%b"=="" GOTO :PARTITIONCREATION
    ECHO You have entered: !INPUT!
    ECHO This will make a partition of !INPUT! megabytes.
    Choice /c yn /m "Partition size !INPUT!?"
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 2 GOTO :PARTITIONCREATION


    ECHO CREATE PARTITION PRIMARY SIZE=!INPUT! >>X:\DISKPART.TXT
    :Skip numbers-only check since M for max.
    GOTO :AFTERPARTCHOICE)


    :AFTERPARTCHOICE
    :If no System Partition is being created, Make it active first time ran.
    IF !NOSYSPART! EQU 1 (
    ECHO Active >>X:\DISKPART.txt
    SET NOSYSPART=0)

    :Recovery Partition Option
    IF !FASTSETUP! EQU 1 GOTO :SHRINKIT
    ECHO -------------------------------------------------------------------------------
    ECHO Windows Recovery image can be used to re-install Windows from the WinRE
    ECHO Recovery Environment. The process will shrink the Windows partition
    ECHO and capture the final install to a separate Recovery Partition. It sets the
    ECHO Recovery options in your system so that if you need to retore your entire
    ECHO Windows Drive, you can do so in the WinRE or Win8/2012's Repair Options
    IF !UEFI! EQU 1 (
    ECHO.
    ECHO WARNING - Windows 7/S2008/S2011 does not use the OSImage correctly in UEFI.
    ECHO Use this only if you plan on installing a Windows 8/2012 or greater OS.
    )
    ECHO -------------------------------------------------------------------------------
    choice /c yn /m "Do you wish to enable the Recovery Partition for this install? "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 2 GOTO :POSTSHRINK
    IF !ERRORTEMP! EQU 1 (
    SET PUSHBUTTON=1
    GOTO :PRESHRINK) ELSE (GOTO :POSTSHRINK)

    :PRESHRINK
    :This part gives an option to change the shrink amount from the default 5 GB
    IF !FASTSETUP! EQU 1 GOTO :SHRINKIT
    ECHO The current Recovery Partition size is %SHRINKAMOUNT%
    ECHO Would you like to change the amount?
    choice /c yn
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! NEQ 1 GOTO:SHRINKIT
    :DONT USE NESTED SET /P command, use goto: with errorlevel to avoid if desired
    SET INPUT=
    SET /P INPUT="Recovery Partition size in MB? (ex 10000 - Numbers only): "
    IF NOT DEFINED INPUT GOTO :PRESHRINK
    :Make sure only numbers were entered
    for /f "tokens=1* delims=0123456789" %%a in ("A0%INPUT:"=%") do if not "%%b"=="" goto :PRESHRINK
    SET SHRINKAMOUNT=!INPUT!

    :SHRINKIT
    :If pushbutton reset image, shrink to make room
    IF !PUSHBUTTON! EQU 1 (ECHO SHRINK MINIMUM=%SHRINKAMOUNT% >>X:\DISKPART.txt)

    :POSTSHRINK
    :Format the Windows Partition
    ECHO format quick fs=ntfs label="Windows" >>X:\DISKPART.txt
    ECHO Assign Letter="Z" >>X:\DISKPART.txt

    :Recovery Partition
    :If a recovery partition was enabled, shrink the first partition created to make room
    IF !PUSHBUTTON! EQU 1 (
    ECHO Create partition Primary size=%SHRINKAMOUNT% >>X:\DISKPART.txt
    ECHO format quick fs=ntfs label="Recovery image" >>X:\DISKPART.txt
    ECHO assign letter="Y" >>X:\DISKPART.txt

    IF !UEFI! EQU 1 (ECHO set id="de94bba4-06d1-4d40-a16a-bfd50179d6ac" >>X:\DISKPART.txt
    ECHO gpt attributes=0x8000000000000001 >>X:\DISKPART.txt)
    IF !UEFI! EQU 0 (ECHO set id=27 >>X:\DISKPART.txt))

    :Execute the partition creation script
    diskpart /s X:\DISKPART.txt
    IF !ERRORLEVEL! NEQ 0 (
    ECHO.
    ECHO There were errors reported during partition creation.
    ECHO You could have selection too large of a partition.
    ECHO You also could have too many partitions already, esp with MBR.
    ECHO Press any key to go back to the MAIN MENU.
    ECHO.
    set MAXPART=0
    pause>NUL
    GOTO :MAINMENU)

    :IMAGESELECTION
    SET INDEX=
    CLS
    ECHO ===============================================================================
    ECHO =============================== INDEX SELECTION ===============================

    :Display-Indexes
    :s1ave77's dism get-wiminfo loop. Thx s1ave77!
    :Just swapped the findstr for a find /i "" so I wouldn't need to add findstr to the distribution
    TYPE X:\IMAGELIST.TXT
    ECHO.
    ECHO ========================== SELECT INDEX OR Q TO EXIT ==========================
    :DONT USE NESTED SET /P command, use goto: with errorlevel to avoid if desired
    SET INPUT=
    SET /P INPUT="Please select an Index Number or Q to exit to the Main Menu: "
    IF NOT DEFINED INPUT GOTO :IMAGESELECTION
    IF /I '!INPUT!'=='Q' (
    SET FASTSETUP=0
    GOTO :MAINMENU
    )
    SET INDEX=!INPUT!

    :CheckIndex

    ECHO.

    dism /Get-WimInfo /WimFile:!INSTALLIMAGE! /index:!INDEX!
    IF !ERRORLEVEL! NEQ 0 GOTO :IMAGESELECTION

    IF !UEFI! EQU 0 GOTO :CONFIRMINDEX
    dism /Get-WimInfo /WimFile:!INSTALLIMAGE! /index:!INDEX! | Find /i "Architecture : x86" >NUL
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! EQU 0 (ECHO NOTE: You should not use x86 Indexes with UEFI-booting.)

    :CONFIRMINDEX
    choice /c yn /n /m "Are you sure you wish to use this index? (Y/N): "
    IF !ERRORLEVEL! NEQ 1 GOTO :IMAGESELECTION
    GOTO :APPLYIMAGE
    :In case functions get moved

    :APPLYIMAGE
    CLS
    for /f "tokens=2 delims=:" %%g in ('dism /Get-WimInfo /WimFile:!INSTALLIMAGE! /Index:!INDEX! ^| find /i "Nom"') do (set Nom=%%g)
    ECHO ===============================================================================
    ECHO.                              SETUP IS WORKING
    ECHO -------------------------------------------------------------------------------
    rem ECHO Script will now apply the !INSTALLIMAGE! Index !INDEX!.
    ECHO Script will now apply !Nom! Source: !INSTALLIMAGE! Index !INDEX!.
    ECHO This will take a while...
    ECHO -------------------------------------------------------------------------------

    :APPLY COMMAND
    IF !SPLIT! EQU 1 (dism /Apply-Image /ImageFile:!INSTALLIMAGE! /swmfile:%SPLITPATTERN% /Index:!INDEX! /ApplyDir:Z:\
    ) ELSE (dism /Apply-Image /ImageFile:!INSTALLIMAGE! /Index:!INDEX! /ApplyDir:Z:\)
    :Again minimal error-handling
    IF !ERRORLEVEL! NEQ 0 (
    Echo.
    ECHO There was a problem applying the image.
    ECHO Press any key to go back to the main menu.
    Pause
    GOTO :MAINMENU)

    ECHO -------------------------------------------------------------------------------
    :Attrib off the hidden system stuff so we can move winre and winrecfg can find it
    ECHO.              Adding boot information to the System partition
    :Copy boot files and set the BCD options
    bcdboot Z:\Windows
    ECHO -------------------------------------------------------------------------------

    ECHO.
    ECHO Setting up WinRE.WIM and the recovery option

    IF EXIST W:\ (md W:\Recovery\WindowsRE
    xcopy /hy Z:\windows\system32\recovery\winre.wim W:\Recovery\WindowsRE\
    winrecfg /setreimage /path W:\Recovery\WindowsRE /target Z:\Windows /bootkey 3b00
    GOTO :INSTALLDRIVERS)

    :IF multi-booting or disabled winre movement, the winre stays where it's at
    IF EXIST Z:\Windows\system32\Recovery\WinRE.wim (
    winrecfg /setreimage /path Z:\Windows\system32\Recovery /target Z:\Windows /bootkey 3b00)

    :INSTALLDRIVERS
    :Ask if user wishes to add drivers to the Z:\Windows partition
    :Drivers installation is not available with fastsetup
    IF !FASTSETUP! EQU 1 GOTO :OEMFOLDERCOPY
    :ADDDRIVERS
    CLS
    ECHO ===============================================================================
    ECHO.                      ADD ^(SOME / MORE^) DRIVERS?
    ECHO -------------------------------------------------------------------------------
    ECHO Would you like to add a driver folder for the Windows installation?
    ECHO You need to add things such as Raid drivers even if you already
    ECHO added them to the WINPE session. ^(Signed only^)
    ECHO Example: Raid drivers for Windows 7/2008r2
    ECHO -------------------------------------------------------------------------------
    choice /c yn /n /m "Add drivers to the Windows offline image? (Y/N): "
    IF !ERRORLEVEL! NEQ 1 (GOTO :OEMFOLDERCOPY)
    ECHO Just type the parent folder, Ex: D:\DRIVERS\x64
    :DONT USE NESTED SET /P command, use goto: with errorlevel to avoid if desired
    SET INPUT=
    SET /P INPUT="Please type the path, C for CMD prompt,or Q to go back: "
    IF NOT DEFINED INPUT GOTO :ADDDRIVERS
    IF /I '!INPUT!'=='Q' GOTO :ADDDRIVERS
    IF /I '!INPUT!'=='C' (START CMD & GOTO :ADDDRIVERS)
    ECHO Attempting to add drivers from !INPUT!
    dism /image:Z:\ /add-driver /driver:!INPUT! /recurse
    :minimal error-handling
    IF !ERRORLEVEL! NEQ 0 (Echo There was a problem attempting to add the drivers at !INPUT!
    pause)
    GOTO :ADDDRIVERS


    :OEMFOLDERCOPY
    :Use a set var="" else the IF NOT EXIST statement will crash the script
    SET OEMFOLDER=""
    FOR %%i IN (Z Y X W V U T S R Q P O N M L K J I H G F E D C B A) DO (IF EXIST %%i:\Sources\$OEM$\ SET OEMFOLDER=%%i:\Sources\$OEM$)
    IF NOT EXIST %OEMFOLDER% GOTO :RECOVERYPARTITIONSETUP
    :IF FASTMODE, copy the files if they exist and skip the choice
    IF !FASTSETUP! EQU 1 GOTO:AFTEROEMCHOICE
    ECHO ===============================================================================
    ECHO.                  $OEM$ Folder was detected in your system
    ECHO -------------------------------------------------------------------------------
    ECHO Would you like to copy the files in $$ and $1 ?
    ECHO -------------------------------------------------------------------------------
    choice /c yn /n /m "Copy the $OEM$ folder contents to the current Windows Partition? (Y/N): "
    IF !ERRORLEVEL! NEQ 1 GOTO :RECOVERYPARTITIONSETUP
    :AFTEROEMCHOICE
    :Your basic $OEM$ folders copy here; no frills
    if exist %OEMFOLDER%\$$\ (xcopy %OEMFOLDER%\$$\* Z:\Windows\ /cherkyi)
    if exist %OEMFOLDER%\$1\ (xcopy %OEMFOLDER%\$1\* Z:\ /cherkyi)

    :RECOVERYPARTITIONSETUP
    :Capture the Z:\Windows Image to the Recovery partition if using recovery image option
    IF !PUSHBUTTON! EQU 0 GOTO :MULTIBOOTOPTION
    CLS
    ECHO ===============================================================================
    ECHO.                  Setting up the Recovery Image partition
    ECHO -------------------------------------------------------------------------------
    ECHO Setup needs to re-capture the image with the drivers and WINRE settings.
    ECHO This will take a few minutes.
    ECHO -------------------------------------------------------------------------------
    MD Y:\Recovery\
    dism /capture-image /imagefile:Y:\Recovery\install.wim /capturedir:Z:\ /name:"Windows Recovery Image" /description:"Windows Recovery Image" /compress:max /checkintegrity /verify
    IF !ERRORLEVEL! NEQ 0 (
    Echo.
    ECHO There was a problem capturing the recovery image.
    ECHO Press any key to continue.
    Pause >NUL)
    winrecfg /setosimage /path Y:\Recovery /target Z:\Windows /index 1
    icacls Y:\Recovery\ /grant:r SYSTEM:(F) /T
    icacls Y:\Recovery\ /grant:r *S-1-5-32-544:(F) /T



    :MULTIBOOTOPTION
    :Re-do the drive letters for multi-boot and cleanup

    :Remove the W driver letter assignment for recovery partition
    ECHO SELECT DISK !DISK! >X:\DISKPART.txt
    ECHO SELECT VOLUME W >>X:\DISKPART.txt
    ECHO REMOVE LETTER=W >>X:\DISKPART.txt
    diskpart /s X:\DISKPART.txt

    :Remove the Y driver letter assignment for recovery partition
    ECHO SELECT DISK !DISK! >X:\DISKPART.txt
    ECHO SELECT VOLUME Y >>X:\DISKPART.txt
    ECHO REMOVE LETTER=Y >>X:\DISKPART.txt
    diskpart /s X:\DISKPART.txt
    set PUSHBUTTON=0

    ECHO SELECT DISK !DISK! >X:\DISKPART.txt
    ECHO SELECT VOLUME Z >>X:\DISKPART.txt
    ECHO REMOVE LETTER=Z >>X:\DISKPART.txt
    ECHO ASSIGN >>X:\DISKPART.txt
    diskpart /s X:\DISKPART.txt

    :Give option to create another partition and apply image, else quit
    IF !MAXPART! EQU 1 GOTO :QUIT
    CLS
    ECHO ===============================================================================
    ECHO.                      SETUP COMPLETE - MULTI-BOOT?
    ECHO -------------------------------------------------------------------------------
    ECHO Would you like to create another partition and setup Multi-Boot?
    ECHO -------------------------------------------------------------------------------
    choice /c yn /m "Create another setup partition? "
    SET ERRORTEMP=!ERRORLEVEL!
    IF !ERRORTEMP! NEQ 1 (GOTO :QUIT)
    :Set multiboot flag and stop winre from moving to system partition in 2nd setup
    SET MULTIBOOT=1
    SET WINRE=0
    :Of course go back to the Partition creation area for the next install
    GOTO :PARTITIONCREATION

    :QUIT
    :Your standard Thank you and goodbye screen
    CLS
    ECHO ===============================================================================
    ECHO.                          END OF THE LINE MATEY:
    ECHO -------------------------------------------------------------------------------
    ECHO.                 Would you like to (R)eset or (S)hutdown?
    ECHO ===============================================================================
    choice /c rs /t 10 /d r /n /m "System will reboot after 10 seconds (R/S): "
    IF !ERRORLEVEL! EQU 1 WPEUTIL reboot
    WPEUTIL shutdown

    The french WinPE-WinReCfg_fr-fr.cab can be found in the KITS directory of the installed ADK.

  10. vigipirate

    vigipirate MDL Senior Member

    Feb 24, 2011
    398
    99
    10
    thank you how to install the menu.cmd a boot wim2 starnet rest on winpeinit no script launching copy menu.cmd + choise + ect mount boot2.wim! can you contact murphy78's to see sy him a future update of his script which is great installation question kind create a mistletoe tools with menu if it is possible
    note to bring if future update
    1-create a recovery tools in winRE winreconfig.xml
    acronis_image for windows_drivesnapshot
    2-power install.wim create split in the menu.cmd script
    3-change the default language in the menu.cmd boot.wim
    put a number for each language the one you want to choose for your country
    4-capture its sysprep image system after installing its drivers is system capture application
    5 change the partition recovery image by default 5000 MB boot.wim
    other inovation at your leisure
    in advance thank you for your work

  11. Enthousiast

    Enthousiast MDL Tester

    Oct 30, 2009
    49,901
    104,491
    450
    I've asked him a little while ago and he said the script can be considered abandoned.

  12. vigipirate

    vigipirate MDL Senior Member

    Feb 24, 2011
    398
    99
    10
    a good his damage he was great he deserves to be pursued thank you

  13. vigipirate

    vigipirate MDL Senior Member

    Feb 24, 2011
    398
    99
    10
    Hello
    can you get the link for murphy78-DiskPart-Apply-v1.2.8 I'm no longer the complete script file in advance thanks

  14. abbodi1406

    abbodi1406 MDL KB0000001

    Feb 19, 2011
    17,281
    91,251
    340
    https://s.put.re/z1VLc6oz.8.7z

  15. Chibi ANUBIS

    Chibi ANUBIS MDL Chibi Developer

    Apr 28, 2014
    1,276
    929
    60
    Hi @Enthousiast :)
    Can you reupload your 1.2.6 version please, I need this to deploy with Install.esd compiled by your script on SiMPLiX thread for Windows 7. And edit with the French fix too :p

    Thanks !

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  16. Enthousiast

    Enthousiast MDL Tester

    Oct 30, 2009
    49,901
    104,491
    450
  17. Chibi ANUBIS

    Chibi ANUBIS MDL Chibi Developer

    Apr 28, 2014
    1,276
    929
    60
    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  18. 0584646546846

    0584646546846 MDL Novice

    Nov 4, 2020
    21
    5
    0
    Hello @murphy78 ,

    I am looking for one of your scripts that would allow you to add a recovery partition, a person to ask on a tracker a great job but all thanks go to you :)

    here are the images that appear on the tracker.


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    am I on the right page?

  19. 0584646546846

    0584646546846 MDL Novice

    Nov 4, 2020
    21
    5
    0
    Can we use the script for Windows 7?

  20. murphy78

    murphy78 MDL DISM Enthusiast

    Nov 18, 2012
    7,427
    11,737
    240
    With Windows 10, they stopped supporting recovery partitions and started using the in-built renew function.
    I think only 8 and 8.1 actually had an ability to restore an installation using the recovery partitions.
    That being said, if anyone had been archiving the versions, I know at least the early ones used them.
    Sadly my entire diskpart drive died last year along with all of my backed up versions.
